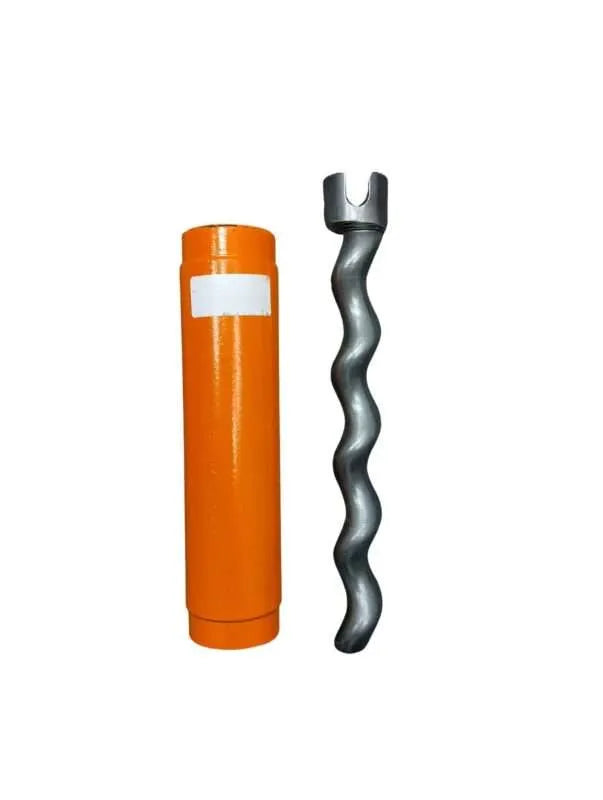

The CES B4-2 N13S orange stator is a replacement pump stator for compatible anti-clockwise render and plaster spraying machines. It works with the matching rotor to pump mixed material through the delivery hose.
Key features and specifications
B4-2 / N13S stator
Anti-clockwise operation
Listed stator length: 210mm; diameter: 50mm
Listed maximum grain size: 2mm
Stator only: matching rotor required
Applications
For compatible PFT Ritmo L, MixxMan S3 and similar machine arrangements. Use the exact pump specification for the material and output required; a matching drive and rotor are essential.
Use and care
Check the existing assembly and machine manual before ordering. Isolate and depressurise before servicing. Inspect the rotor for wear when replacing the stator, and follow the machine instructions for lubrication and commissioning.
