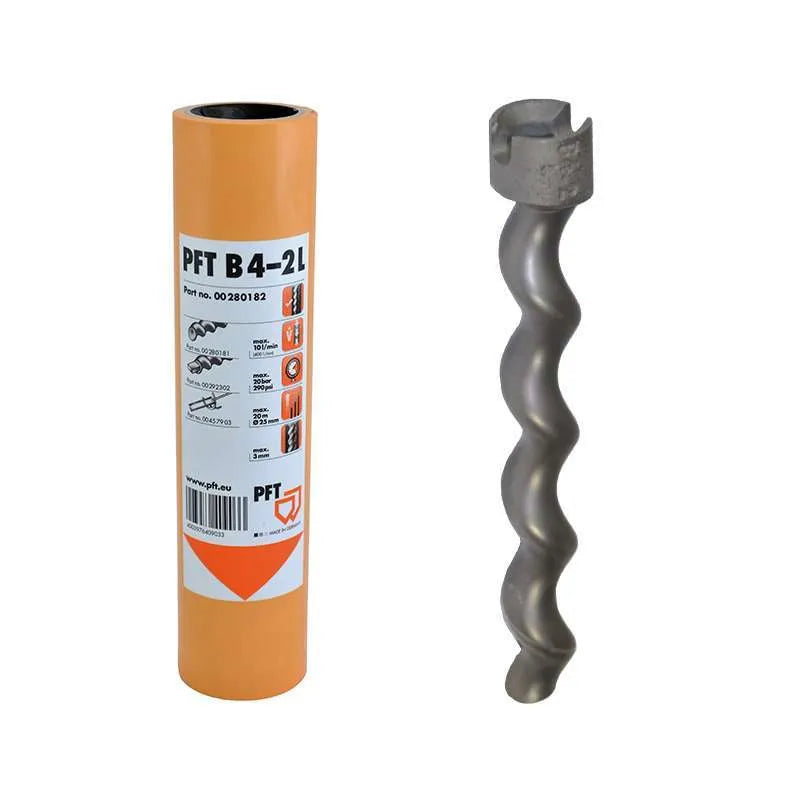

The PFT Ritmo B4-2 rotor and stator set is a replacement pumping assembly for compatible anti-clockwise plastering and rendering machines. The rotor and stator work together to transfer mixed material through the delivery system at a controlled output.
Key features and specifications
B4-2 anti-clockwise rotation
For compatible PFT Ritmo L machines
Stator length: 210mm; diameter: 50mm
Listed maximum grain size: 2mm
Listed maximum working pressure: 20 bar
Applications
Suitable for replacing a worn pump set when spraying compatible plaster or render. The listed outputs are 5 litres/min at 200rpm and 10 litres/min at 400rpm; actual output depends on material and operating conditions.
Use and care
Check the machine model, drive connection and rotation before ordering. Isolate and depressurise the machine before replacement, and follow the machine instructions for fitting, lubrication and initial operation.
